Ballroom Set

Ballroom Photoshop Sketch

Cinderella House Set

Full stage rake

48'wide x 24' deep Fitted with 4 actor traps, 4 pyro ports and 8 low fog ports

Rake top view and paint treatment

Large, herringbone cobblestone treatment 48'wide x 24' deep Fitted with 4 actor traps, 4 pyro ports and 8 low fog ports

Hoberman sphere toy

The mechanical inspiration for the pumpkin/carriage transformation

First sphere test

Paper arms and brass pins

Hoberman Open Closed

Vectorworks rendering for prototyping

Half Sphere Foamcore Closed

Prototype made of foamcore and project board cut with laser cutter

Half Sphere Foamcore Open

HobermanAluminumFinal

Pieces drafted in Vectorworks then transferred to AutoCAD for waterjet cutting

Aluminum Sphere Raw Pieces

Over 400 waterjet-cut pieces of aluminum

Final assembly station

Over 1500 total pieces including screws and spacers

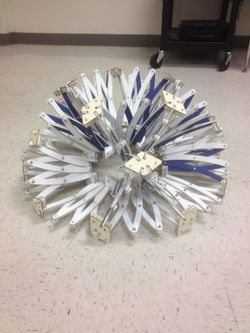

Partially assembled

Fully assembled and dressed

Carriage In Performance
